What Causes Pipeline Wear in Pneumatic Conveying Systems?

Pipeline wear in pneumatic conveying systems is one of the most common and costly challenges in bulk material handling. The first sign of excessive erosion is usually bend wear/failure, and this leads to unplanned downtime and maintenance.

The problem is especially severe when conveying abrasive materials like silica sand, glass cullet, refractory batch, aluminum oxide, and silicon carbide. In many cases, wear becomes a recurring issue simply because the system was not properly engineered for the material or operating conditions.

At Dynamic Air, we’ve engineered more than 15,000 pneumatic conveying systems worldwide since 1969. And when we started our business, we focused on the conveying of abrasive foundry sand and glass batch. Through decades of testing and real-world installations, we’ve found that pipeline wear is rarely caused by a single issue; it’s typically the result of several interacting factors, with conveying velocity being the dominant variable.

In this blog, we’ll break down the five primary causes of pipeline wear in pneumatic conveying systems and explain how proper system design can dramatically reduce erosion and extend pipeline life.

1. Particle Velocity: The #1 Cause of Pipeline Wear

When engineers ask what causes pipe wear in pneumatic conveying systems, the answer almost always starts with conveying velocity. The faster material moves through the pipeline, the faster wear occurs.

Industry erosion studies show wear rates increase exponentially as particle velocity rises. Wear scales roughly with velocity to the power of 2.65 (Wear ∝ V²·⁶⁵). The implication is brutal in practice.  Using commonly cited erosion relationships, a conveying line operating at 3,500 fpm may experience approximately 175× more wear than a system operating at 500 fpm, depending on the material and pipeline geometry.

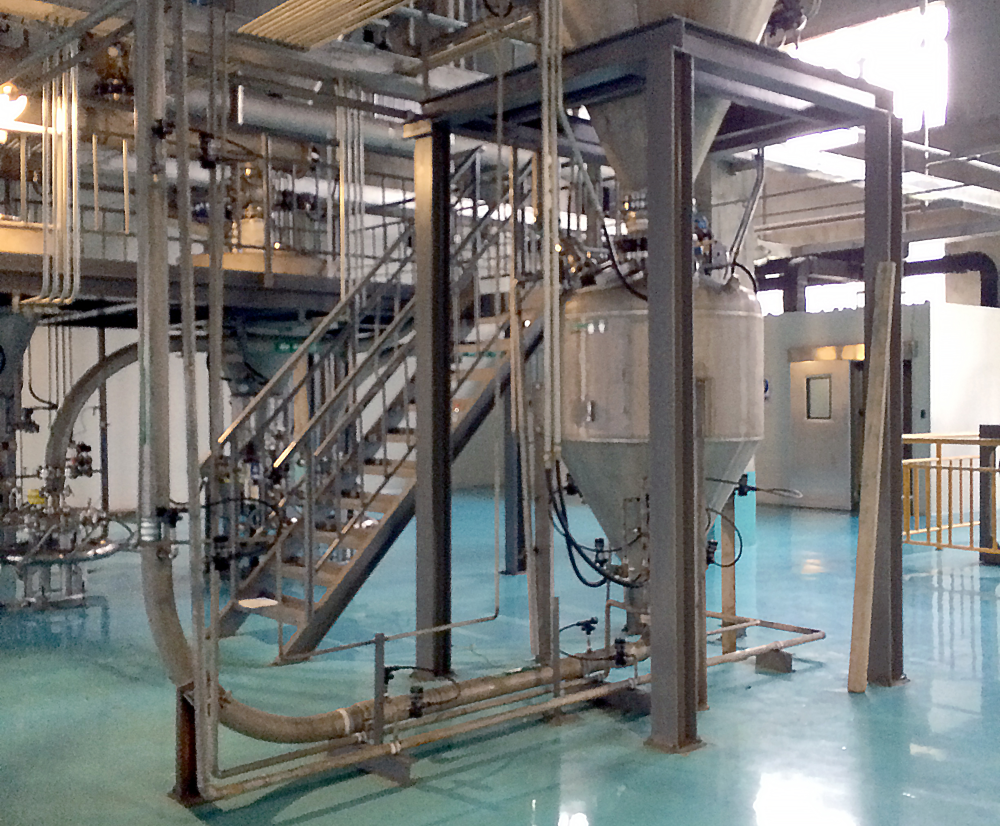

Dynamic Air HDP dense phase systems are engineered to operate at significantly lower conveying velocities, often between 100–1,000 fpm, helping reduce particle impact and pipeline wear. Our proprietary DC-5 Air Saver Technology further minimizes velocity by maintaining slug integrity at the lowest possible airflow.

2. Conveying density matters

Aside from particle velocity, one of the biggest differences between dilute-phase and dense-phase pneumatic conveying systems is the conveying density.  High-velocity dilute phase systems keep particles suspended in the airflow and convey at a density closer to the density of air than the bulk density of the material, increasing particle-on-wall contact and accelerating erosion. Nearly every particle wears against the bend wall.  Dense phase systems operate at a density near the bulk density of the material.  Only the material along the circumference of the convey pipe comes in contact with the bend wall.  The material in the middle is protected.  This significantly reduces wear and is most noticeable when handling abrasive materials.

Dynamic Air HDP dense phase systems are engineered to convey at higher conveying densities, which leaves most of the conveyed material protected.

3. Material Abrasiveness Accelerates Erosion

The third major cause of pneumatic conveying pipe wear is material abrasiveness.

Several material properties directly affect erosion rates, including:

• Particle hardness
• Particle shape and sharpness
• Particle size

Hard and sharp materials create more erosive wear because particles repeatedly strike and cut pipe walls, elbows, and fittings.

Materials like glass cullet or crushed silica sand are particularly erosive due to their hardness and angularity. Silica sand pneumatic conveying wear, for example, is notoriously severe in high-velocity systems because silica particles are both extremely hard and abrasive.

This is why material testing is critical before specifying a pneumatic conveying system. At the Dynamic Air Testing Facility in St. Paul, Minnesota, we evaluate real material behavior under conveying conditions to determine the ideal velocity range, conveying method, and pipeline configuration.

4. Pipeline Geometry: Why Elbows Wear Out First

In most pneumatic conveying systems, elbows are the primary wear point.

Peer-reviewed research shows elbows can wear approximately 50× faster than straight pipe sections because particles repeatedly impact the outer wall during directional changes.

When high-velocity material reaches a bend, particles cannot instantly follow the airflow path. Instead, they continue forward and collide with the elbow wall, creating concentrated erosion.

Common high-wear areas include:

• Elbows and bends
• Tees and wyes
• Pipe transitions
• Diverter valves
• Pipe fittings and couplings

Pneumatic conveying bend erosion becomes even more severe when conveying velocities are too high or airflow becomes unstable.

At Dynamic Air, minimizing elbow wear is a core part of system engineering. Our dense phase systems reduce particle velocity before material reaches bends and transitions, significantly reducing impact wear.

Our HDP 4000 Full Line Concept system helps eliminate repeated empty/refill cycling — another major contributor to conveying line erosion.

5. System Design Errors Create Accelerated Wear

Many cases of pneumatic conveying line failure are ultimately caused by improper system design.

Common design-related causes of erosion include:

• Incorrect system design
• Incorrect conveying velocity for the material
• Improper elbow selection or bend radius
• Poor pipe joints and transitions
• Using dilute phase conveying for highly abrasive materials

Even a wear-resistant pipe cannot compensate for an improperly engineered conveying system. That’s why Dynamic Air focuses on application-specific engineering rather than one-size-fits-all solutions. Every material behaves differently, and system design must account for real operating conditions.

6. Operating Conditions & System Cycling

Operating conditions can also accelerate pipeline erosion, even in properly designed systems.

Some of the most common contributors include:

• Empty/refill cycling that creates velocity surges
• Moisture changes that affect material flow behavior
• Poor compressed air quality
• Feed rate or airflow fluctuations

Repeated empty/refill cycling is especially damaging because it creates unstable conveying conditions and increased particle impact. Dynamic Air’s HDP 4000 Full Line Concept helps minimize this issue by maintaining a full conveying line and reducing cycling-related wear.

Dense Phase vs. Dilute Phase Wear

One of the biggest differences between dilute phase wear and dense phase wear comes down to particle velocity.

Dilute Phase Pneumatic Conveying

• High velocity
• Greater particle-on-wall contact
• Increased erosion rates
• More elbow wear

Dense Phase Pneumatic Conveying

• Low velocity
• Reduced particle impact energy
• Lower erosion rates
• Longer pipeline life

For abrasive material pneumatic conveying applications, dense phase systems are often the preferred solution because they minimize conveying velocity while maintaining stable material flow.

How to Reduce Wear in Pneumatic Conveying Systems

Reducing pipeline wear requires proper engineering, material testing, and velocity control.

Effective strategies include:

• Lowering conveying velocity whenever possible
• Using dense phase conveying for abrasive materials
• Minimizing the number of bends
• Selecting proper pipeline geometry and fittings
• Eliminating unstable conveying cycles
• Testing materials before final system design

At Dynamic Air, our systems are engineered around these principles to help customers reduce erosion, extend pipeline life, and improve long-term conveying reliability.

Reduce Pipeline Wear With Proper System Design

Pipeline wear can be dramatically reduced with the right combination of conveying velocity, pipeline geometry, and dense phase technology. Dynamic Air engineers pneumatic conveying systems specifically for abrasive and heavy materials, helping customers minimize erosion, reduce downtime, and extend equipment life.

Contact Dynamic Air today to discuss your application and learn how our custom pneumatic conveying systems can improve long-term conveying performance and reliability.

Frequently Asked Questions About Pipeline Wear in Pneumatic Conveying Systems

What is the main cause of pipeline wear in pneumatic conveying systems?

The primary cause of pipeline wear is excessive particle velocity. Wear rates increase exponentially as conveying velocity rises, especially when handling abrasive materials like silica sand, fly ash, or metal oxides.

Where does the most wear occur in a pneumatic conveying line?

The highest wear typically occurs at elbows, bends, tees, and transitions. Research shows elbows can wear approximately 50× faster than straight pipe sections because particles repeatedly impact the outer wall during directional changes.

Why does dense phase pneumatic conveying cause less pipe wear than dilute phase?

Dense phase systems operate at lower conveying velocities, which reduces particle impact energy and minimizes erosion. Dilute phase systems rely on higher air velocities that increase particle-on-wall contact and accelerate wear.

Which materials cause the most pipeline wear?

Highly abrasive and sharply shaped materials such as silica sand, zircon sand, glass cullet, and aluminum oxide are among the most erosive materials in pneumatic conveying systems.

Do I need wear-resistant pipe to handle abrasive materials?

Wear-resistant pipe can help extend pipeline life, but it is rarely required. It should not replace proper system design. Reducing conveying velocity and optimizing pipeline geometry are often more effective at minimizing long-term wear than simply adding harder materials.
